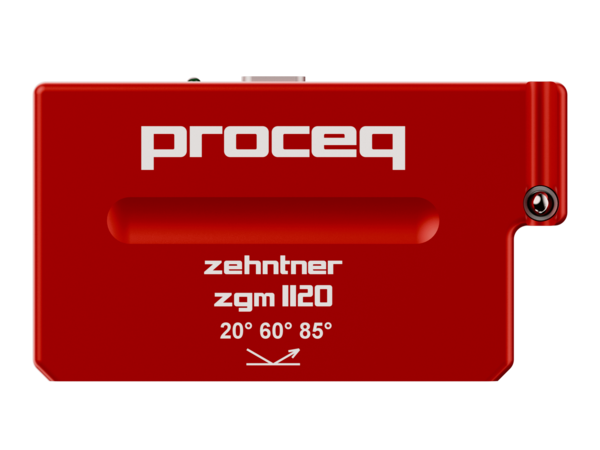

ZGM 1120 Portable Precision Glossmeter
ZGM 1120 Portable Precision Glossmeter
ZGM 1120 Portable Precision Glossmeter
ZGM 1120 Portable Precision Glossmeter
ZGM 1120
ZGM 1120
ZGM 1120
ZGM 1120

Zehntner Gloss

ZGM 1120

Portable Precision Glossmeter

  • Measure curved and confined spaces
  • Plug-and-play connection to your PC
  • One-button operation

Applications:

Stand-alone use / Coatings, plastics, and related materials. 20° (high-gloss), 60° (mid-gloss) and Haze

Compact and versatile portable precision glossmeter with the smallest dimensions for measurements on small, curved and very hard to reach surfaces.
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Versatile
Measure curved and confined spaces with ease, with reliable and cosistent results.
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_Connected.svg
Connected
Plug-and-play connection to your PC with data transmitted directly to the computer.
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Ease%20of%20Use.svg
Ease-of-use
A one-button operation and the ability to measure even very confined surfaces.

SWISS MADE_horizontal lockup.svg
ZGM 1120 Tech Specs
Instrument
Tech Specs
PC Software
Screening Eagle Workspace

Display
Connects to computer

Memory
Connects to computer

Measurement Modes
Single, Continous

Measuring Geometries
1-angle: 60°
2-angle: 20°/60°
3-angle: 20°/60°/85°

Measuring Range
0 - 2‘000 GU

Measuring Accuracy
0 - 199.9 GU: ± 0.1%
200 - 2‘000 GU: ± 0.1 %

Weight
60°: 90 g (0.198 lbs)
20°/60°: 96 g (0.212 lbs)
20°/60°/85°: 120 g (0.265 lbs)

Battery
USB-powered
Other customers also purchased:
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM D2457
  • Arrow, click names to download Standards & Guidelines ASTM D523
  • Arrow, click names to download Standards & Guidelines BS 3900-D6
  • Arrow, click names to download Standards & Guidelines DIN 67530
  • Arrow, click names to download Standards & Guidelines Depending on version:
  • Arrow, click names to download Standards & Guidelines ISO 2813
  • Arrow, click names to download Standards & Guidelines JIS Z 8741
FAQ

What is specular reflection or specular gloss?

A specular reflection or gloss is what you get from a polished surface or mirror. It is clear, and you can see "through" the mirror. A diffuse reflection is what you get from a white wall. The light is bounced off it, but...

See More

What is a gloss measurement angle?

Measurement angle refers to the angle between the incident light on a surface and the line perpendicular to the surface at the point of incidence. In specular reflection the incident and reflected angle are...

See More

What difference in gloss units is visible to the human eye?

There are no distinct differences in gloss units for the human eye to point out between the two samples.

The detectable differences depend on the gloss level of the sample e.g. 3.0 GU difference measured on a very matte...

See More

How is gloss measured?

Gloss is the opti­cal proper­ty of a sur­face to reflect light into the specu­lar direction, an important appear­ance factor. The visual impres­sion of gloss is depen­dent on the individual per­ception, there­fore...

See More

Why use a glossmeter?

A glossmeter is a precision measurement instrument. In order to determine the gloss of a surface, the glossmeter projects a beam of light at a fixed intensity and angle onto a surface and measures the amount of reflected...

See More
