Zehntner Marking Retroreflection

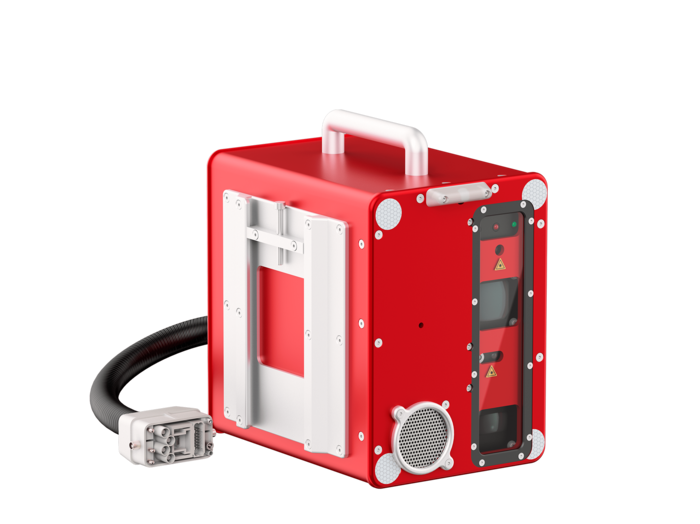

ZDR 6020 RL

Vehicle-mounted retroreflectometer for safe and efficient continuous measurements

  • Vehicle-mounted with accurate 300 measurements per second
  • Handheld precision at up to 150 km/h (93 mph)
  • Industrial grade touchscreen tablet

Applications:

Continuous measurements of the night visibility (RL) / Use on all types of road and airport markings / Field and laboratory use / Quality assessment

The best value in night visibility measurement
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Reliability.svg
Reliability
Vehicle-mounted with 300 measurements per second guaranteeing accurate and continuous coverage for all types of colors and road markings
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Accuracy.svg
Accuracy
Handheld precision at up to 150 km/h (93 mph) without obstructing traffic and for all light conditions, even in bright sunlight
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_User%20Experience.svg
User Experience
Measurements can be evaluated with the free mapping and tools software on an industrial-grade touchscreen tablet with a multilingual user interface
SWISS MADE_horizontal lockup.svg
ZDR 6020 RL Tech Specs
Instrument
Tech Specs
Technology
Integrated camera for road surveillance with 10m (32.81 ft) picture sequence
Measuring Resolution
Data recording with 300 measurements per second
Display
11.6 in. touchscreen tablet with installed ZDR 6020 RetroGrabber software and microphone
Measurements
Measuring area (WxL) - ≥1000 mm x 880 mm (≥39.4“ x 34.65“)
Measuring distance in front of the measuring head - 6 m (19.7 ft)
Measuring speed - max. 150 km/h (93.21 mph)
Measuring Range
RL: 0 - 4‘000 mcd•m-2•lx-1
Profiled Markings: ≈20 mm (0.79")
Measuring Accuracy
Handheld precision at up to 150 km/h (93 mph)
Observation Angle
EN 1436: 2.29°
ASTM E 1710: 1.05°
Illumination Angle
EN 1436: 1.24°
ASTM E 1710: 88.76°
Reporting software
Includes mapping and data analysis software MappingTools
Weight
Measuring Head: 10.5 kg (23.1 lbs)
Operating Temperature
0°C to 55°C (32°F to 131°F)
Special Features
Languages available: German, English, Spanish, French Italian, Russian, Chinese, Korean
PDF Version
Other customers also purchased:
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTEM E2176 (Withdrawn 2013)
  • Arrow, click names to download Standards & Guidelines ASTM E1710-18
  • Arrow, click names to download Standards & Guidelines ASTM E2177
  • Arrow, click names to download Standards & Guidelines CIE 54.2
  • Arrow, click names to download Standards & Guidelines EN 13197
  • Arrow, click names to download Standards & Guidelines EN 1436
FAQ
What is retroreflection (night visibility)

Retroreflection, also called night visibility, is a specific type of light reflection when the light rays goes on a surface and comes back to the source of light. This principle is a pillar in road safety. Indeed, the...
