Flaw Detection

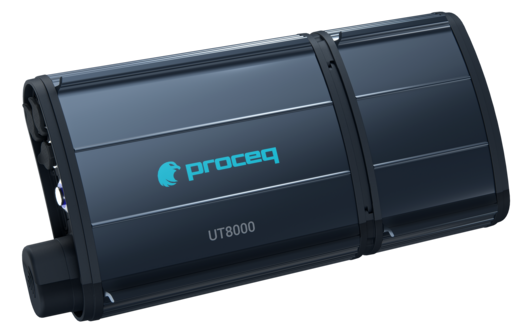

UT8000

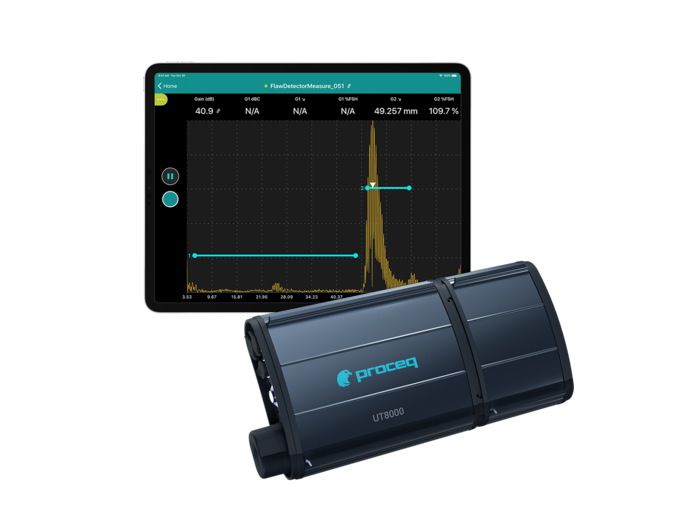

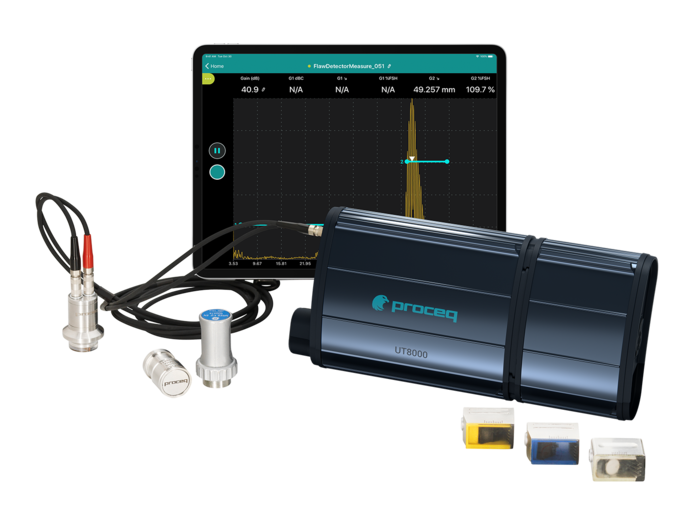

Portable ultrasound flaw detector for different types of material and components. Delivering fully traceable inspection data and rapid report creation.

  • Unmatched performance and ruggedness.
  • Simplicity to enhance productivity
  • Unique rewind and log-book functions

Applications:

Ultrasonic Inspection of Welds / Ultrasonic Inspection of Cast and Forged Metals / Ultrasonic Thickness Gauging and Lamination Assessments / Ultrasonic Corrosion Mapping / High Temperature Thickness Measurements / Detection and the Sizing of Defects, Cracks, and Porosity

Maximizes your inspection performance with the unique fully digital ultrasonic Flaw detector. Designed for field Ultrasonic inspections and Corrosion mapping.
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Versatility.svg
Swiss Quality
Swiss Quality for unmatched performance and ruggedness. A unit that can meet the most demanding environment and requirements.
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Collaboration.svg
Enhanced Productivity
No adaptation time needed: learn within 1hour and start your inspection with the most intuitive, user-friendly, feature-rich, intelligent software
https://screeningeagleassets.s3.eu-central-1.amazonaws.com/asset/media/Brand/New%20Web%20Icons/Web%20Icons_21-10-20_Peace%20of%20Mind.svg
Peace of Mind
The unique Rewind and log-book functions record and secure set-ups and inspection results, enabling on-demand assessment of inspection parameters. Including GPS locations, photos of the components and even audio messages.
Proceq Flaw Detector App
Intuitive evolution for high performance

• Free updates & releases
• Customer-centric development
• Intelligent features to enhance your productivity

Detect flaws in many types of materials reliably and efficiently, with end-to-end traceability. This user-friendly app is the first of its kind, with the ability to rewind time for each indication as well as rich collaboration features including voice, photo and text annotations.

Every update brings exciting new capabilities. See the evolution so far…

Icon Product AppStore

• Free updates & releases
• Customer-centric development
• Intelligent features to enhance your productivity

Detect flaws in many types of materials reliably and efficiently, with end-to-end traceability. This user-friendly app is the first of its kind, with the ability to rewind time for each indication as well as rich collaboration features including voice, photo and text annotations.

Every update brings exciting new capabilities. See the evolution so far…

Proceq Flaw Detector App
App Version 1

Top capabilities introduced with App Version 1:

• The world's first fully wireless UT instrument with intelligent software
• 400 Volt Square Pulser for even the most demanding jobs
• Corrosion Grid added to give more insights into your measurements
• Heat Map on corrosion for precise visualization of your findings
• Rewind time to replay the inspection process
• Full data access even in offline mode
• Secure cloud data sharing for significantly improved collaboration
• German, Chinese, Korean, Russian language support
• Remote support/data sharing in real-time
• Full Logbook automation to make your procedures traceable

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Icon Product AppStore

Top capabilities introduced with App Version 1:

• The world's first fully wireless UT instrument with intelligent software
• 400 Volt Square Pulser for even the most demanding jobs
• Corrosion Grid added to give more insights into your measurements
• Heat Map on corrosion for precise visualization of your findings
• Rewind time to replay the inspection process
• Full data access even in offline mode
• Secure cloud data sharing for significantly improved collaboration
• German, Chinese, Korean, Russian language support
• Remote support/data sharing in real-time
• Full Logbook automation to make your procedures traceable

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq Flaw Detector App
App Version 2

Top capabilities introduced with App Version 2:

  • DGS curves sizing technique for enhanced measurements
  • HTML export option
  • Multi-language support
  • Double screen view to any external screen
  • Automatic Wi-Fi reconnect feature

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Icon Product AppStore

Top capabilities introduced with App Version 2:

  • DGS curves sizing technique for enhanced measurements
  • HTML export option
  • Multi-language support
  • Double screen view to any external screen
  • Automatic Wi-Fi reconnect feature

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Proceq Flaw Detector App
App Version 3

Top capabilities introduced with APP Version 3:

  • B-Scan Cross Sectional View
  • B-Scan Thickness Profile View
  • B-Scan Single value View
  • Curve Surface Correction (CSC)

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

Icon Product AppStore

Top capabilities introduced with APP Version 3:

  • B-Scan Cross Sectional View
  • B-Scan Thickness Profile View
  • B-Scan Single value View
  • Curve Surface Correction (CSC)

… and much more.

Continuous software service, maintenance and bug fixes. Compatibility upgrades to fully support the latest generation iPads and the latest version of iOS to enhance your productivity.

SWISS MADE_horizontal lockup.svg
Software for Proceq Flaw Detector App
Proceq Flaw Detector App
Tech Specs
Automated calibration
Velocity, zero offset
Test modes
Pulse echo, dual, through transmission or grid
Units
Millimeters, inches, or microseconds
Range
3 – 11760 mm at 5900 m/s
Velocity
100 – 10000 m/s
Zero offset
0 – 50 mm
Display delay
up to full range
Refracted angle
0° – 90° in 1° increments
Gates
2x, fully independent
Alarms
Positive and negative threshold/curve
Measurement display
Up to 5 locations (manual or auto selection)
Echo-to-echo
Standard gate 2 – gate 1
Measurement
DAC / TCG / AVG(DGS) / AWS / CSC
Languages
English, German, Italian, French, Spanish, Chinese, Japanese, Korean, Russian, Turkish
UT8000 Tech Specs
Instrument
Tech Specs
Configuration
1 UT channel
Transducer Socket
Lemo 00
Pulse Voltage
100 to 400 V (square pulse)
PRF
10 – 2000 Hz
Gain Range
0-110 dB
Bandwidth
0.2 - 20MHz
Display
Any Compatible Apple iPad®
8.3 to 12.9 Inches
Memory
Up to 2 TB (depending on the iPad model)
Connections
Encrypted Wi-Fi connection to iPad
USB-C cable to iPad
Signal Enhancement
Digital and analogue filters, rejection, averaging
Digitizing Frequency
125 MHz
Supported Scans
A-Scan, B-Scan, Grid
Report Generation
Indication table, HTML export
Encoder
6 PIN Lemo, B-Scan
Battery
Removable pack, 6x AA (NiMH), flight-safe
Autonomy
5 Hrs
Damping
50, 400 Ω
Pulse width
Adjustable; 25 – 2500 nsec
Weight
698 g, incl. battery pack
1.54 lbs incl. battery pack
Input / Output
1 USB-C charging
1 USB-C data connection
IP rating
IP67
Shock tested
MIL STD 810 H Meth 516.8 Proc. II
Vibration Test
MIL STD 810 H Meth. 514.8 Proc. I Cat. 4
Norm
BS EN 12668-1 Certificate
ISO 22232-1 Certificate
ASTM E317
PDF Version
Other customers also purchased:
Standards & Guidelines

Standards

  • Arrow, click names to download Standards & Guidelines ASTM E317 - 16
  • Arrow, click names to download Standards & Guidelines EN 12668-1
FAQ
What does traditional or conventional UT mean?

Conventional Ultrasonic Testing (UT) inspection is a commonly-used non-destructive testing (NDT) technique that measures the propagation of mechanical vibrations (ultrasonic waves) through the material to examine...

See More
What defects can you find with a flaw detector?

A variety of flaws occur in materials and parts either during manufacturing or due to the aging effect in the field and can be found with a flaw detector: Void / Porosity Inclusions Cracks (subsurface or surface) Weld Bond...

See More
What are the types of NDT?

Many different NDT methods are available in the industry, each of them having its own advantages and limitations, but six of them are most frequently used: ultrasonic testing (UT), radiographic testing (RT),...

See More
What is ultrasonic testing?

Ultrasonic (UT) inspection is a method of characterizing the thickness or internal structure of a piece using high-frequency sound waves. The frequencies used for ultrasonic testing are many times higher than the limit of...

See More
What materials can be tested with ultrasonic testing?

In industrial applications, the majority of materials can be inspected with UT including plastics, composites, and ceramics. The only materials that are not suitable for ultrasonic testing with conventional equipment are...

See More
What is an ultrasonic flaw detector?

An ultrasonic flaw detector is an instrument suitable to perform non-destructive inspection on several types of materials, fields and segments. It is utilized in aerospace, auotmotive, oil & gas and all the other segments...
